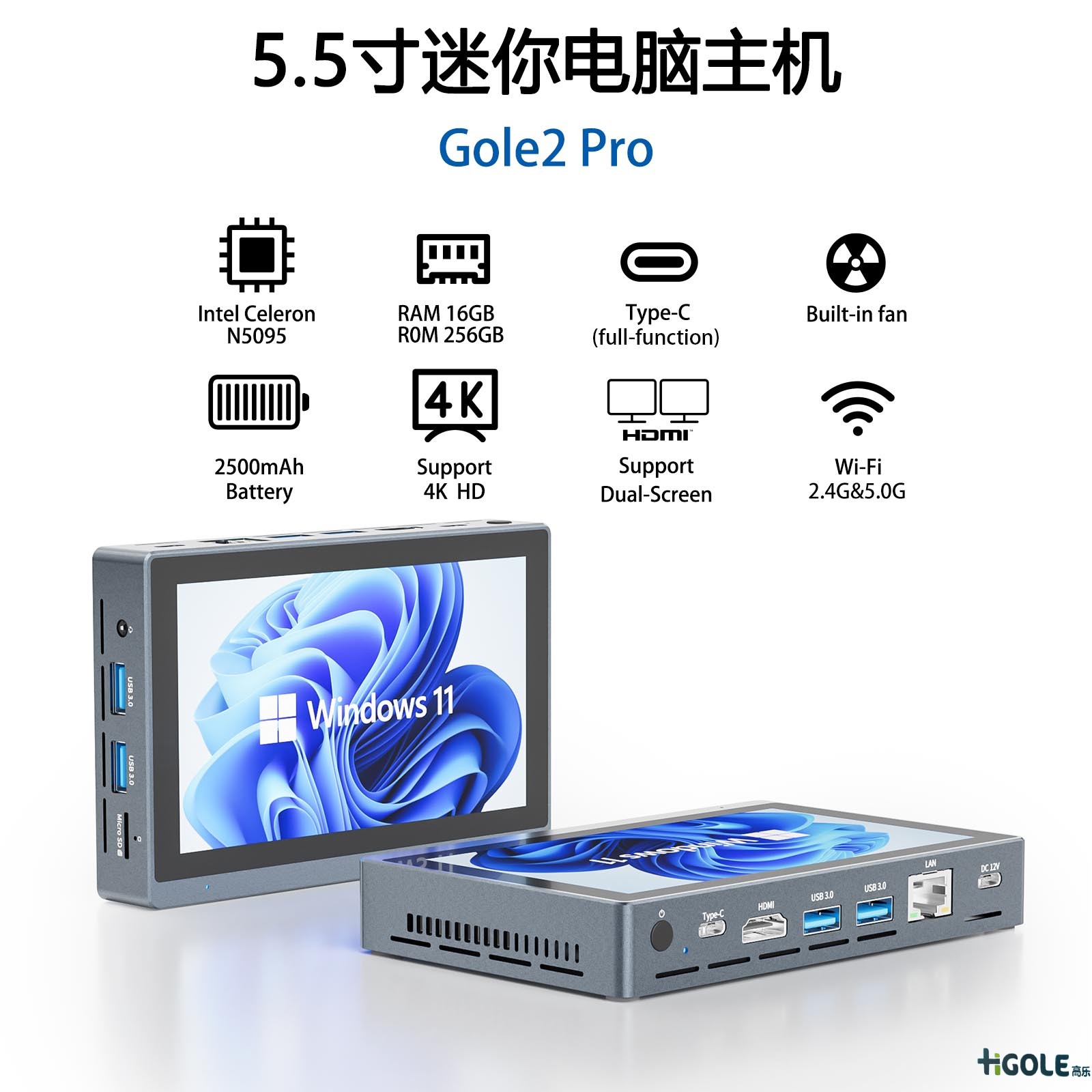

| Key Features | 5.5" IPS + Intel N5095/N5105 +16GB + 256GB + WiFi 5 + 1000Mbps千兆網(wǎng) + HDMI2.0 X1+ USB3.0 X 4 | |||||
| System Physical Standard Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | 5.5" Mini pc+Tablet | ||||

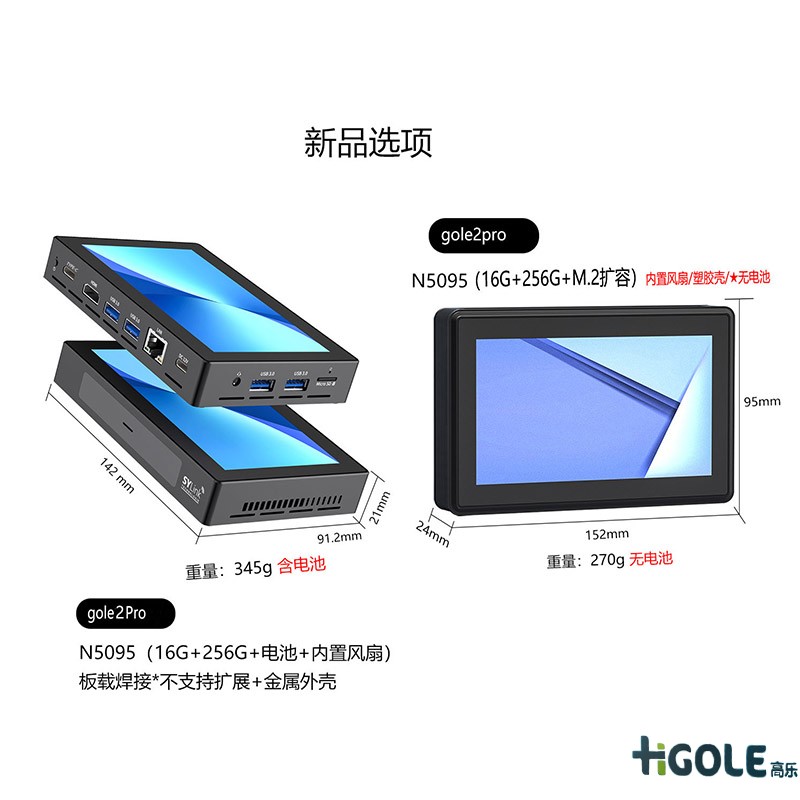

| Dimensions | 142×91×22mm | |||||
| Weight | 0.32KG | |||||
| LCD | Screen Size | 5.5" | ||||
| Screen Resolution | 720*1280 (IPS ) | |||||
| TP | Touch Module | G+G 5 Multi-Touch | ||||
| Battery | Type | Rechargeable lithium polymer | ||||
| Capacity | 2500mAh/7.6V | |||||
| Working Time | 4.5 hours (FHD local video display) | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||

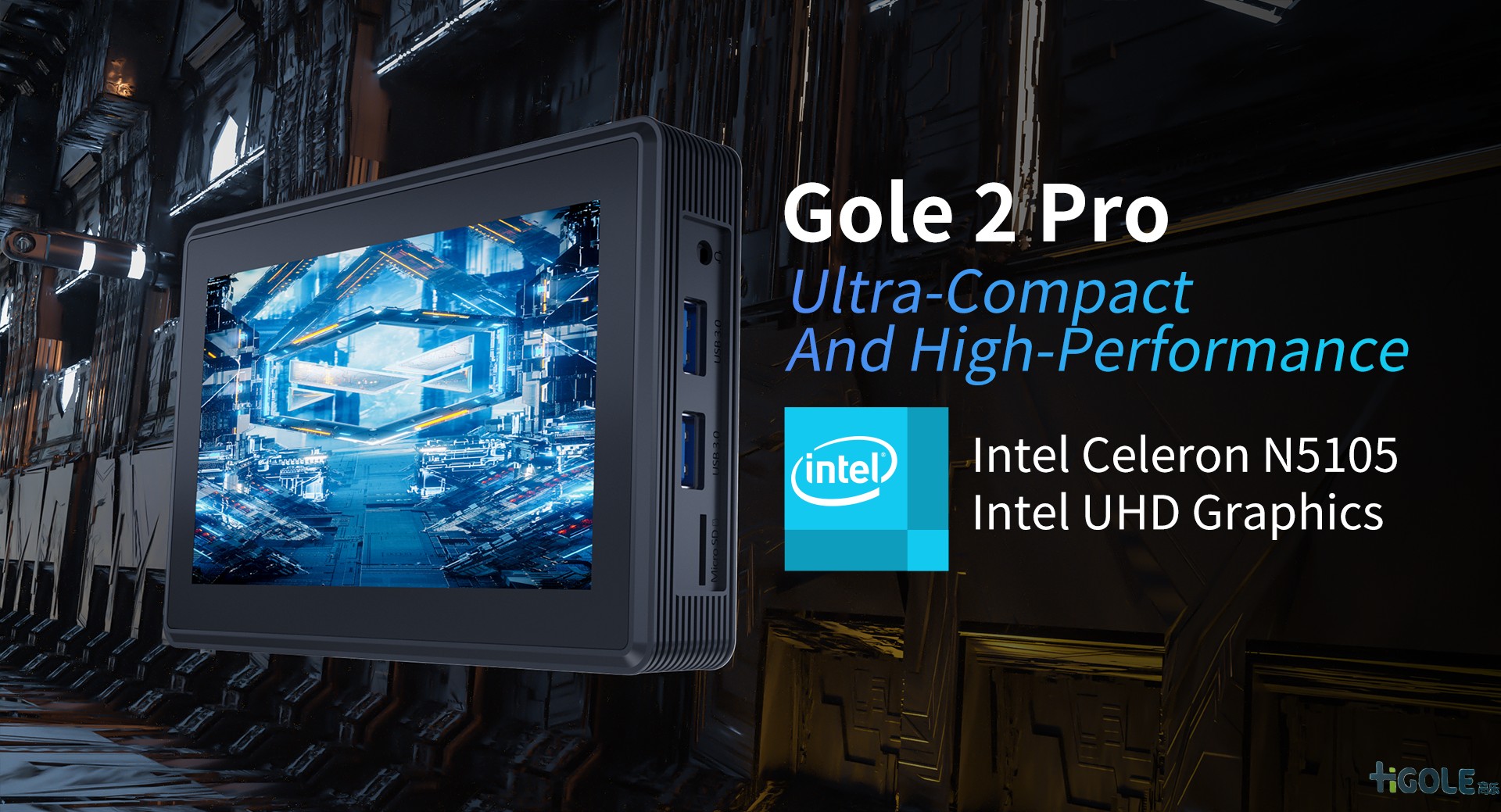

| CPU | Type | Intel Celeron （N5095+帶風扇+SSD+無電池+塑膠殼）/（N5095+電池+風扇+金屬殼|） | ||||
| Speed | 2.0GHz ~ 2.90GHz | |||||
| GPU | Type | Intel UHD Graphics | ||||
| Memory | Capacity | 16GB/(Optional) LPDDR4 | ||||
| Storage | eMMC | 256GB(Optional) | ||||

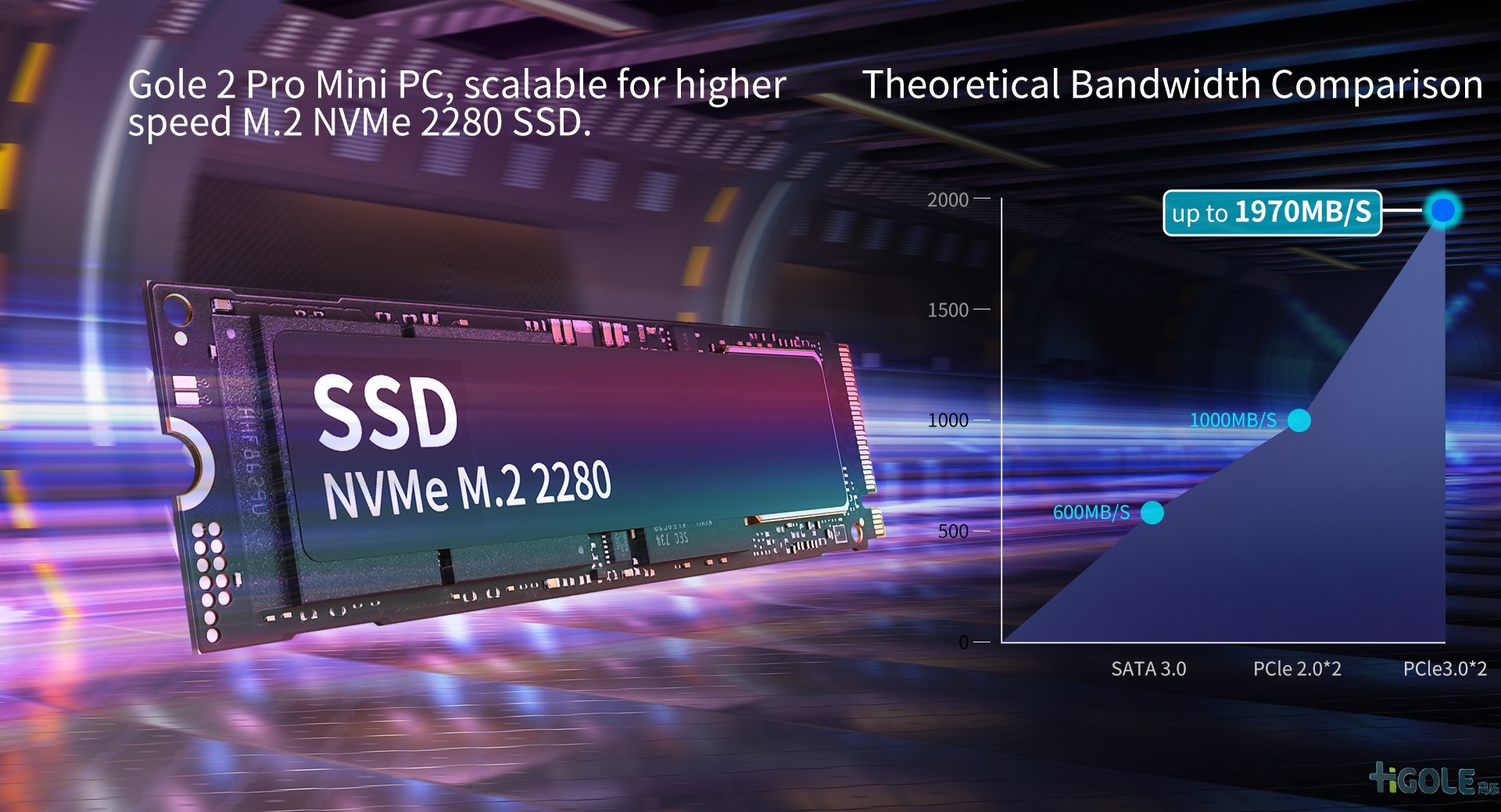

| NVME | ×1pc | |||||
| SATA 2.5“ HDD | / | |||||
| Speaker | Built-in | Optional 8Ω/1W | ||||
| Micphone | Built-in | Optional | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | RTL8852BE-CG | WiFi5 | ||||
| Bluetooth | RTL8852BE-CG | Bluetooth 5.0 | ||||
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan | ||||

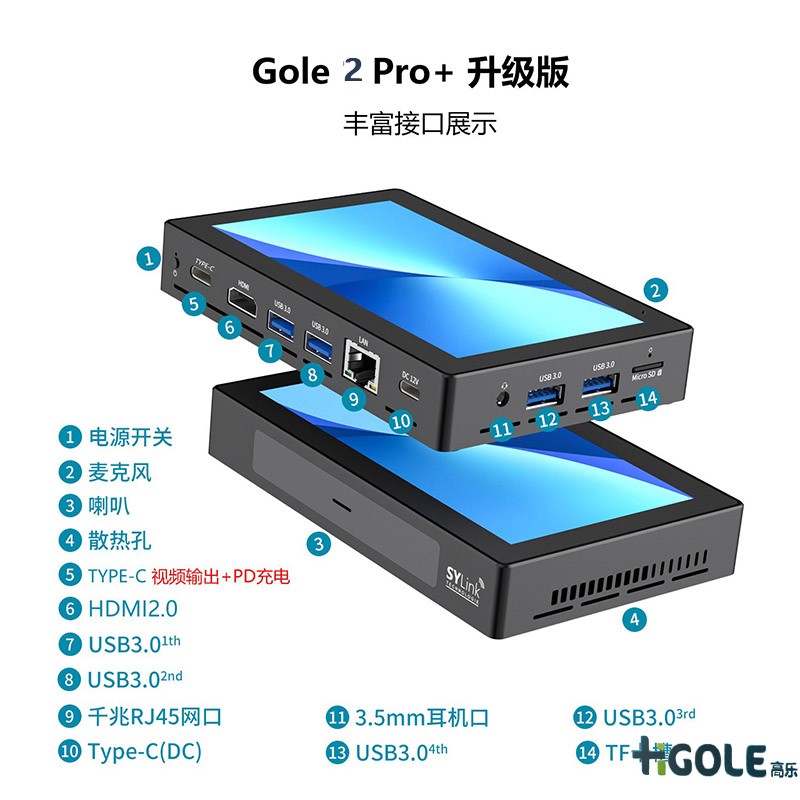

| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 | ×4pc（5V/1A) | ||||
| Type-C | Type-C 3.1 | ×1pc（全功能 ,支持PD充電，視頻） | ||||
| SD / TF Card reader | TF Card reader | ×1pc (up to 512GB) | ||||
| Audio Jack | 3.5mm headphone (Output only) | ×1pc | ||||
| HDMI | HDMI 2.0 | ×1pc | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | / | ||||
| CMOS Reset | Reset by Short Press | / | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 12V/3A | ×1pc | ||||
| User's Manual | User's Manual | ×1pc | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Power on Function | By Power Button or Auto Power on | Optional | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | / | ||||
| PXE | Preboot Execution Environment | / | ||||
| Operating System | Windows 11 | Optional | ||||
| Linux | Optional | |||||
| Certification: | ||||||
| CE | CE | Yes | ||||
| Other | Other | Optional | ||||
