| 基本配置 | 10.1" IPS + Apollo lake N4200 + 4GB + 64GB + WiFi 5G&2.4G Dual-band + 1000Mbps + HDMI1.4 + USB3.0 + Fanless |
| 產品形態與標準配置: |
| 類型 | 描述 | 規格 |
| 重量和尺寸 | Form Factor | 10.1" 一體機電腦 |
| Dimensions | 199 x 136 x 27mm |
| Weight | 0.7KG |
| 顯示屏 | Screen Size | 8" |
| Screen Resolution | 1280×800 (IPS + 250ANSI) |
| 觸摸屏 | Touch Module | G+G Multi-Touch |
| 電池 | Recharge Li-ion battery | Optional |
| 系統描述 |
| 類型 | 描述 | 規格 |
| CPU | Type | Intel Apollo Lake N4200 FOUR-Core |
| Speed | 1.1GHz ~ 2.50GHz |
| GPU | Type | Intel HD Graphics 505 |
| 運行內存 | Capacity | 4GB (LPDDR4) |
| 存儲 | eMMC | 64GB |
| SSD (M.2; 22×42mm) | Optional |
| SATA 2.5“ HDD | Optional |
| 喇叭 | Built-in | 8Ω/1W |
| 麥克風 | Built-in | Optional |
| 重力感應器 | Built-in | Yes |
| 網絡配置 |
| 類型 | 描述 | 規格 |
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band |
| 藍牙 | BT Module: Intel AC3165 | Bluetooth4.2 |

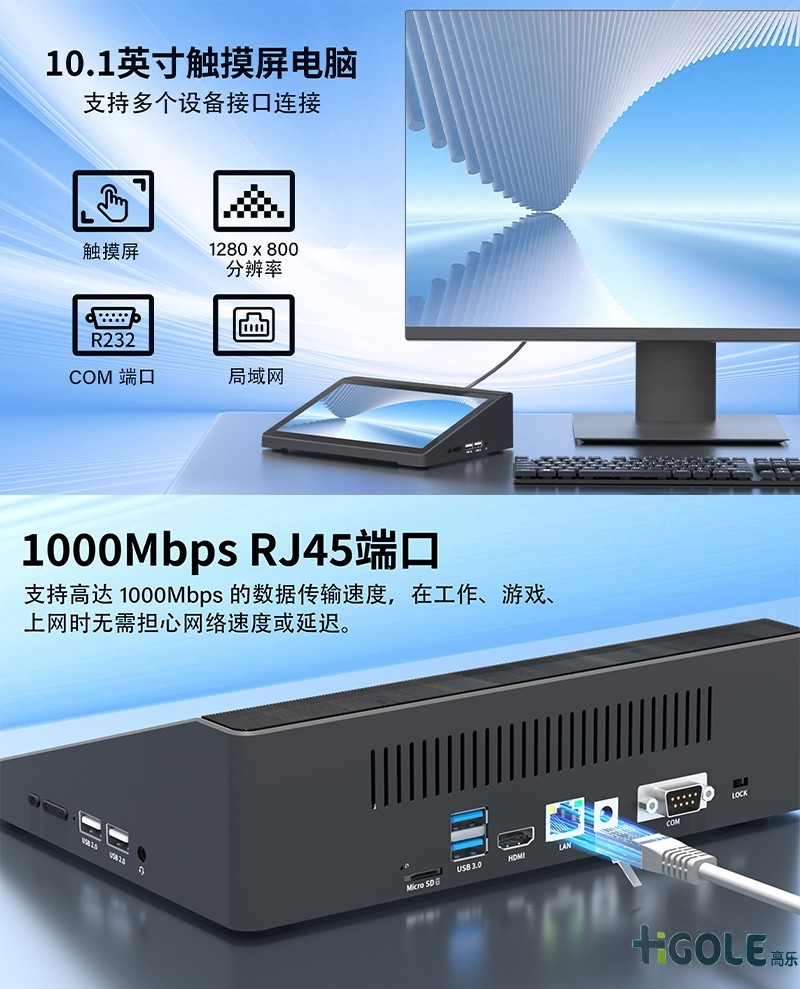

| 網口 | RJ-45 | 100/1000Mbps Gigabit Lan |
| 4G LTE | M.2 4G module | Optional |

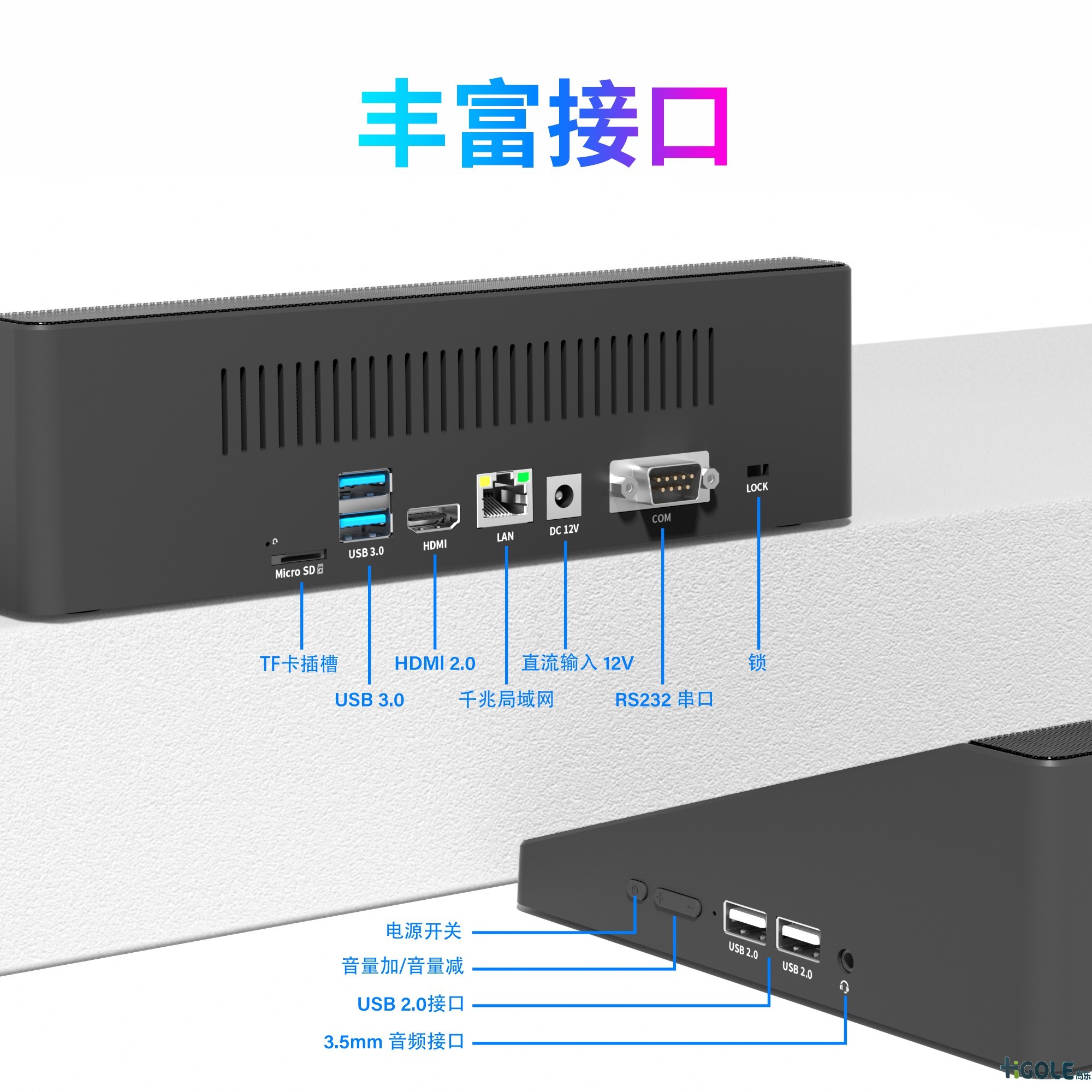

| 接口 |
| 類型 | 描述 | 規格 |
| USB | USB3.0 Host | ×2pcs |
| USB2.0 Host | ×2pcs |
| SD / TF Card reader | TF Card reader | ×1pc |
| Audio Jack | 3.5mm headphone | ×1pc |
| HDMI | HDMI 1.4 | ×1pc |
| Video output through HDMI | Up to 4K |
| 按鍵說明 |
| 類型 | 描述 | 規格 |
| 開關機按鍵 | On/Off | ×1pc |
| 音量鍵 | Down/UP | ×1pc |
| 重置按鍵 | Reset by Short Press | Optional |
| 配件說明， |
| 類型 | 描述 | 規格 |
| 適配器 | DC 12V/2A | ×1pc |
| 說明書 | User's Manual | ×1pc |
| 軟件配置 |
| 類型 | 描述 | 規格 |
| 開機方式 | By Power Button or Auto Power on | Optional |
| 網絡喚醒 | Wake up on Lan by RJ45 | Support |
| PXE | Preboot Execution Environment | Support |
| 系統描述 | Windows 10 | Optional |
| Linux | Test by end user |
| 環境描述 |
| 使用溫度 | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| 存儲溫度 | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
| 認證: |
| CE | CE | Optional |
| Other | Other | Optional |
